Used For Derrick And Gantry Frame Electric Drill Winch
Introduction

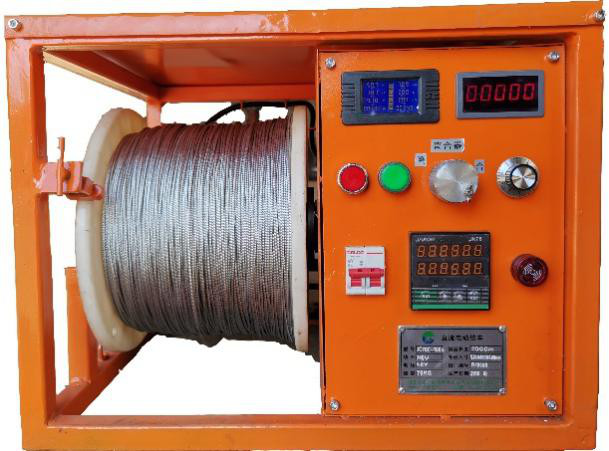

Model JC78C multi-functional electric winch is a supporting power
equipment of pipeline 3D attitude measuring instrument. It uses DC
motor to drive pipeline 3D attitude measuring instrument to conduct
in pipeline measurement, and it can also be used in the field of
wire and optical cable laying. It has complete functions, compact
structure and simple operation.
The main structure features
Compact structure and reasonable design.
Light duty, compact design, beauty
High strength component, Durable and Reliable
Light to medium work duty, Safety and Steadly working
Easy to install, operate and maintenance.
Low noise and good working condition
Advantages
Bold reinforced reel
Assemble fixed card, lock wire rope, use more stable, large reel
and large capacity, wide range of use.
Channel steel base
Welded structure to prevent loosening and effectively enhance
stability.
Pure copper motor
Pure copper motor has high magnetic induction melting point and low
loss.
Delicate shell
The case body and lid are made of high quality cast iron to protect
the internal parts from tight assembly.
Product parameters
| Application | Drilling |
| Maximum speed | 150rad / min |
| Brake | Hydraulic brake |
| Rated voltage | DC48V |
| Rated power | 780W |
| Power Source | Electric |
| Capacity | 20-100KN |
| Steel wire rope | Φ 2.5mm, 500-1000mm |
| Advantage | safe ,long service lift |
| Color | As your requirement |
| Rated Load | 0--650KN |
| Equipment size | 530 x 460 x 400 (mm) |
| Operating weight | 65kg |
Field of use
Can be used alone, also can be used for hoisting,road and mine
hoisting machinery components, such as simple operation, large
amount of rope, convenient and widely used.Mainly used in
construction, water conservancy projects, forestry, mining, wharf
and other material lifting or towing.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control the quality?
A: We have our own experienced QC team and will conduct rigorous
inspection and testing on each order before shipment.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
