Anti Abrasive Oilfield Drilling Mud Linear Motion Shale Shaker
Shale Shaker Of Drilling Industry Machinery Shale Shaker Screen
Advantages
The vibrating screen has simple structure, reliable performance,
large disposal capacity, long service life and simple maintenance.
With high vibration intensity, adjustable pitch, compact structure,
reliable performance and high cost performance, it is a competitive
product in the international market.
Introduction
Shale vibrating screen is the first phase solids control equipment
in the drilling fluid processing system, also known as the key
solids control equipment in the drilling fluid system, which
determines the performance of the entire solids control system. In
addition to a single vibrating screen, a single skid tandem
vibrating screen, a single skid triple vibrating screen, a union
vibrating screen and a mud distributor can also be provided
according to customer requirements.
Product parameters
| Weight | 1638 kg |
| Color | Customized |
| Vibrating Mode | Linear type |
| Motor power | 1.94kw*2 |
| Adjustable G force | ≤ 8G |
| Deck angle range | -1° - 5° |
| Starting mode | Magnetic start |
| L*W*H(mm) | 2761*1998*1428 or Customized |
| Capacity, m3/h | 45, 120, 140 |
| Vibration Motor, KW | 2x0.75, 2x1.72, 2x1.94 |
| Screen Qty, pcs | 2, 3, 4 |
| Screen Size: LxW, mm | 750x900, 700x1250, 585x1165 |
| Screen Area, m2 | 1.35, 2.63, 2.73 |
| Customized | YES |
| Model | CSJ-HJ-30604 | CSJ-HJ-301075 | CSJ-HJ-601555 | CSJ-HJ-1202075 |
| Capacity (m3/h) | 25 | 60 | 120 |
| Jet pump Power(kw) | 4 | 11 | 22 |
| Mixing reducer(kw) | 4 | 7.5 | 2X5.5 | 2X7.5 |
| Tank volume (m3) | 6 | 10 | 15 | 20 |
| Size(mm) | 3200X1850X1900 | 3800X2000X2100 | 5300X2000X2500 | 6800X2200X2500 |
Field of use
Linear motion vibrating screen is widely used in the solid phase
control of oil and gas drilling mud. In a complete mud recovery
system, the vibrating screen is the first-level equipment for
solids control and mud cleaning. The shale shaker used for solids
control is a device that removes drill cuttings from the drilling
fluid during circulation and drilling. By using different screen
screens, linear shakers maximize cuttings removal and retrieve
valuable drilling fluid into the mud system for subsequent
processing.
The main structure features
Vibration strength up to 8G can be adjusted to effectively dry
cuttings.
The overall heat treatment of the sieve box can satisfy the higher
vibration intensity and the longer working time.
Electric screen box angle adjustment, convenient and reliable,
mechanical angle adjustment is available.
The patented design of the screen box seal, good sealing effect,
long service life, easy to replace.
The bottom of the screen box is made of stainless steel, which is
corrosion resistant and greatly improves the service life.

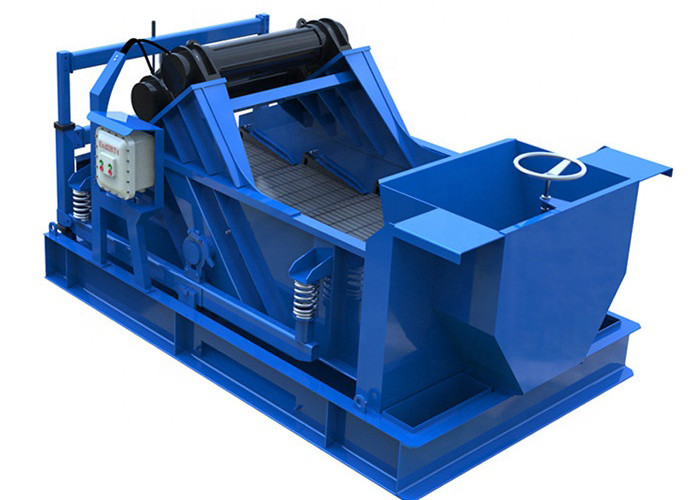

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control the quality?
A: We have our own experienced QC team and will conduct rigorous
inspection and testing on each order before shipment.
6. Fast lead time:
A: It usually takes 25 days to produce, but only 3 or 5 days if we
have your size in stock.
