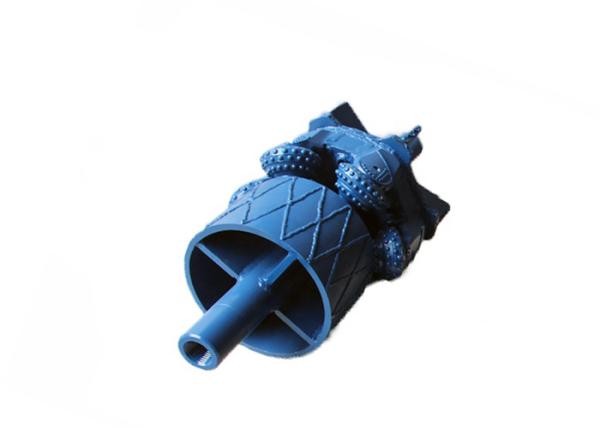

400mm 600mm Heat Treated Hard Rocking Reamer Hole Opener
HDD Hole Opener For Hard Rocking Horizontal Directional Drilling
Introduction
HDD hole openers range from 12 to 66, and are divided into MT type
and TCI type, which are suitable for the compressive strength of
various formations.
It is used for non-excavation horizontal directional drilling and
vertical drilling reaming of petroleum, natural gas, petrochemical,
sewage, electric power, and fiber optic pipelines.
In this operation, hole drilling is the most arduous task, and the
key to hole drilling operation is to choose a suitable hole opener
according to the operating equipment and formation.
Use a drilling machine to make holes with low torque.
Main size: general drill diameter: 311mm, 346mm, 400mm, 500mm,
600mm, 800mm, 900mm, etc. Various sizes can be customized.
Features
1. Connect the drill bit according to API standard.
2. We can adjust the bit size according to your drilling rig.
3. The best results can be obtained by using steel tooth bits in
soft formations.
Our Services
1. We are manufacture can supply good quality goods and competitive
price
2. We not only have ourselves design but also can accept
customization
3. We have fast and on time delivery time
4. Every bits have it's quality assurance
5. Contact our anytime if you have any question with bits.
6. 24 hours on time reply
Product parameters
| Product name | HDD hole opener |
| Usage | horizontal directional drilling |
| Application formation | medium hard with relatively higher compressive strength and hard
stringers, such as hard shale, sandstone and limestone, etc. |
| Weight | 200kg-400kg |
| Machine Type | Drilling Equipment |
| Heat treatment | Heat Treated |
| Processing Type | Forging |
| Color | Customer's Requirement |
Reamer Size | Cone size and # of Cones | Threads |
| Cone size | #of Cones | Cone size | # of Cones |
| 10“ | 6 1/2” | 3 | | | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) |
| 12“ | 8 1/2” | 3 | | |
| 16“ |
8 1/2”or 9 1/2” | 4 | | | For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
| 18”-20“ | 5 | 12 1/4” | 4 |
| 22”-24“ | 6 |
12 1/4” or 13 5/8” | 5 |
| 28”-30” | 7 | 6 |
| 32”-34” | 8 | 7 |
| 36“-38” | 9 | 8 |
| 40“-42” | 10 | 9 |
| 44“-46” | 11 | 10 |
| 48”-50” | 12-13 | 11 |
Used in
Apply to Construction, Water Drilling, Mining, Horizontal
Directional Drilling, Geothermal and Environ-mental.
Pic Show
FAQ
Q: How to order the products?
A: Order directly!
Q: How to control the quality?
A: We should be checking & testing everyone drill bit before
shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Can we select the color of the drill bit?
A: Yes, we have the color of bule, golden, silvery for your choose.
If you need, we can make the drill bit color based on yours.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be
compensate you the same. Any question or problem we will be reply
you within 24 hours.
