    1000 GPM Trenchless HDD Drilling Mud Recycling Unit

    1000 GPM Trenchless HDD Drilling Mud Recycling Unit


    HDD Drilling Mud Recycling Unit, Mud Process System


    Introduction

    HDD mud recycling system is design for Horizontal Directional Drilling ( HDD ) rig.

    Depending on drilling mud requirement, a HDD mud recycling system can including shale shaker, desander cyclone, desilter cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The shaker screen mesh size will depending on a shaker performance for mud flow and drilling mud separation at different mud requirement.


    The main structure features

    1. Good productivity and performance: the system has a capacity of up to 240m3 / h (1000GPM), which can meet the requirements of mud treatment in large-scale trenchless projects.

    2. All parts of the equipment are connected quickly and disassembled conveniently, saving time.

    3. The high wear-resistant polyurethane cyclone is the same as the international brand, can be used for more than 3800 hours, long service life, interchangeable.

    4. Explosion-proof lamp can meet the requirements of night construction, easy to operate and safe.


    Product parameters


    CustomizedYES
    Capacity50-240 ㎥/h (200-1000 GPM)
    Screen Area2.2-8.4 ㎡
    Separation Stage2stage / 3stage
    Tank Volume5-30 ㎥
    Total Power25-184 Kw
    Total Weight5.5-20 t
    Land Transport Dimension (mm)customized
    Screen materialPolyurethane
    Cyclone (mm)250 -900
    Impeller materialCr26
    ApplicationDrilling
    SpecificationCan be customized according to requirements

    ModelCSJ-FN-30CCSJ-FN-60CCSJ-FN-120CCSJ-FN-200C
    Capacity (m3/h)3060120200
    Slurry pumpModelDC-EHM-1.5CDC-EHM-3CDC-EHM-3CDC-EHM-4C
    Power (Kw)7.5112237
    Pressure (MPa)1.0~2.0
    Shale shakerPower(Kw)1.5233
    Vibration force(KN)30406060

    Screen

    size (mm)

    UP1400X6001700x7001900X10002100x1200
    Down1400X6001700x7001900X10002100x1200
    Cone ModelFN-100FN-150
    Cone Number36128
    Separation size (μm)10-30
    Total Power (KW)9132540
    System Max.Size(mm)1650X1450X21502000X1600X22502170X2000X24002400*2300*2400
    System weight (Kg)1200190025003500


    HDD Mud Recycling System Working Procedure

    1. There is a drill pit at each side of drilling hole, a set of vertical slurry pump will set on top of mud pit for feeding shale shaker. The shale shaker screen will separate drilling cuttings and discharge out, fluids part will drop into sand trap through screen hole.
    2. 1 or 2 or 3 sets of desander cyclone sit after shale shaker, one set of centrifugal pump will feed desander cyclong for second phase separation, solids out of desander will be discharge to shaker screen or cutting box directly and fluids over flow from desander will flow into desander compartment.
    3. A quantity of desilter cyclones will sit after desander for fine solids separation, solids out of desilter will discharge to shaker screen or cuttings box, fluids over from desilter will drop into desilter compartment.
    4. A mixing pump sit on tank skid for drilling mud transfer and feed mud into mud hopper for new mud remix by new chemicals. The mixing hopper can sit on top of tank or tank skid as per client’s demand.


    Advantages

    1. With modular design and small footprint, it can be flexibly configured and installed according to the customer’s requirements.
    2. The side plates of mud tanks are designed with corrugated and load-supporting type, which are safer and can bear more load.
    3. It is simple for installation and disassembly, and convenient for frequent moving along with drilling crew.

    4. The system adopts centralized electrical control, easy to operate.

    5. All equipment are designed to withstand corrosion and wear, long service life.

    6. Adapt to severe drilling operation conditions, with the functions of cold resistance, heat resistance, explosion proof, leakage proof, corrosion resistance and rain proof.


    Pic Show

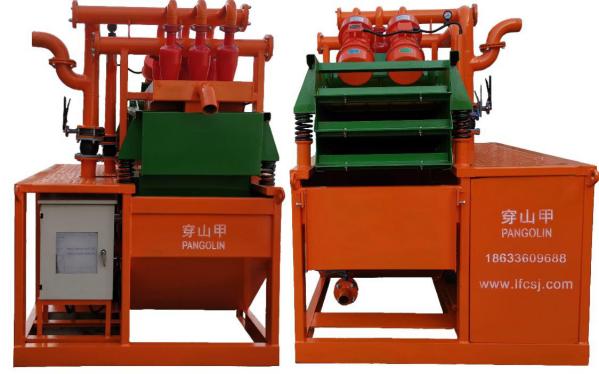

    1000 GPM Trenchless HDD Drilling Mud Recycling Unit


    FAQ:


    1. How to order the products?

    A: Please send the inquiry with detail item description or with Model number.


    2. How about the common packing?

    A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.


    3. Can I expect a quality products?

    A: Yes. mature production technology ensuring the quality satisfy international request.


    4. How to check if the product is what you want?

    A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.


    5. How to control the quality?

    A: We have our own experienced QC team and will conduct rigorous inspection and testing on each order before shipment.


    6. Fast delivery time:

    A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.


    7. Competitive price:

    A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
