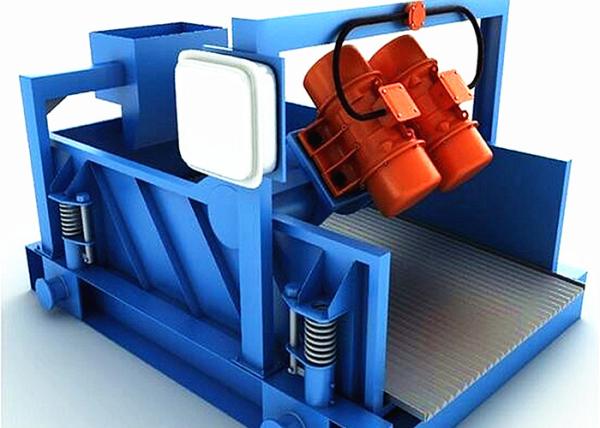

Multi Stage Horizontal Vibrating Drilling Mud Shale Shaker
Oilfield Drill Rig Parts Shale Shaker,Drilling Mud Shale Shaker
Introduction
Shale shaker is the first phase solid control device in the
drilling fluid treatment system, also known as the key solid
control device in the drilling mud system, shale shaker determines
the performance of the entire solid control system. In addition to
single-page shakers, series shakers and triple shakers can be
supplied on a single skid, as well as connecting manifolds and mud
dispensers, upon request.
The main structure features
Intensity vibration is as high as 8G,and can adjust,can effective
dry drilling cuttings
Electric screen box Angle adjustment, convenient and reliable, and
the mechanical Angle adjustment for standby
Screen box overall heat treatment, which can meet high vibration
intensity work long hours.
Screen box seal patent design, good sealing effect, long service
life, easy to replace
The bottom of the screen box is made of stainless steel, which can
resist corrosion and greatly improve its service life
Advantages
The shale shakers has the advantages of simple structure,reliable
performance,large disposal capacity,long service life,and simple
maintenance. It being provided with high vibration intensity ,
adjustable-pitch ,compact, reliable ,behavior and cost effective
,is known as a competitive product in the international market.
Product parameters
| Customized | YES |
| Weight | 1638 kg |
| Color | Customized |
| Vibrating Mode | Linear type |
| Motor power | 1.94kw*2 |
| Adjustable G force | ≤ 8G |
| Deck angle range | -1° - 5° |
| Starting mode | Magnetic start |
| L*W*H(mm) | 2761*1998*1428 or Customized |
| Capacity, m3/h | 45, 120, 140 |
| Vibration Motor, KW | 2x0.75, 2x1.72, 2x1.94 |
| Screen Qty, pcs | 2, 3, 4 |
| Screen Size: LxW, mm | 750x900, 700x1250, 585x1165 |
| Screen Area, m2 | 1.35, 2.63, 2.73 |
| Model | CSJ-HJ-30604 | CSJ-HJ-301075 | CSJ-HJ-601555 | CSJ-HJ-1202075 |
| Capacity (m3/h) | 25 | 60 | 120 |
| Jet pump Power(kw) | 4 | 11 | 22 |
| Mixing reducer(kw) | 4 | 7.5 | 2X5.5 | 2X7.5 |
| Tank volume (m3) | 6 | 10 | 15 | 20 |
| Size(mm) | 3200X1850X1900 | 3800X2000X2100 | 5300X2000X2500 | 6800X2200X2500 |
Field of use
Linear motion shale shaker are widely used for drilling mud solids
control of oil & gas well drilling. In a complete mud recycling
system, shale shaker is the first stage equipment for both solids
control and mud cleaning. Shale shaker for solids control are
devices that remove drill cuttings from the drilling fluid while
circulating and drilling. By using different wire mesh screen,
linear motion shaker could maximally remove the drilling cuttings
and recover the valuable drilling mud back into the mud system for
subsequent treatment.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
4. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
5. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
6. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
