Horizontal Directional Drilling Downhole Soil Hole Opener
Larger Bearing And Cutters Dramatically Soil Hole Opener Extended
Life Downhole
Introduction
HDDD hole openers for horizontal drilling
Horizontal reamer, also known as HDDD reamer, is used to expand the
pilot hole of horizontal directional drilling (HDDD) - HDDD is used
when grooves and excavations are not practical. This drilling
technique allows drilling underground in a manipulable trenchless
manner.
Advantages
Cutting Structure
Reaming bit mainly consists of four or more cones. Main cutting
tooth is Tungsten Carbide insert tooth and steel tooth welded
new-type wear-resistant alloy. High quality tungsten carbide tooth
of new formula and new technique increases the service life of
reaming bit. The pilot is roller cone bit or drag bit.
Seal and Lubrication
The bearing seal applys high performance O-ring seal or metal
sealed bearing and imported lubrication grease special for bit.
Product Predominance
It is applied in the big size casing well section, mining and
infrastructure building drilling.
Product parameters
| Surface Treatment | Spray-Paint |
| Manufacturing Process | Casting |
| Material | Cast Iron, Alloy Steel |
| Wob Kn/mm | 0.40~1.05 |
| Volume | 180×98×108cm |
| Nw/ Gw (Kg) | 330/ 350 |
| Bearing Type | Metal Sealed Sliding Bearing |
| RPM r/ min | 110~40 |
| Bearing Type | Journal Bearing |
| Sealed Material | Rubber/Metal |
| Color | Blue, Golden |
| Advantage | High Performance |
| Connected Thread | 6 5/8′′reg |
The main structure features
Reamer with interchangeable tool was developed for large diameter
HDD projects where extending downhole life is critical. Larger
bearings and tools significantly extend downhole life compared to
smaller, conventional types of tools.
Replaceable milling sets are available in TCI and grinding teeth to
accommodate a variety of rock formations. All bits have 3-6 cutters
and can be drilled in 4 different sizes.
All tool bearings are metal sealed. Tool locks are used to prevent
cutting tools from falling off.
It can provide 400-2000mm hole opener.
There are three stages
1 .the first stage is to drill a small diameter pilot hole.
2. The second stage is enlarge the hole with a larger diameter
cutting tool called an HDD Reamer,
Rock Reamer or Hole Opener.
3. The third stage is inserting the casing pipe or other product
into the enlarged hole.

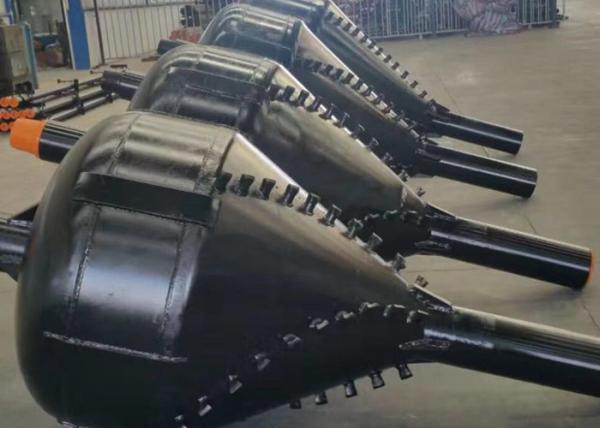

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
