Cast Iron Replaceable Cutter HDD Reamer Soil Hole Opener

Soil Hole Opener With Replaceable Cutter For Large Diameter HDD Projects


Product parameters

Introduction
HDD hole opener for horizontal drilling
Horizontal Hole Openers, also known as HDD Reamers, are used to enlarge the pilot hole in Horizontal Directional Drilling(HDD) - HDD is used when trenching and excavating is not practical.This drilling technology allows for a steerable trenchless way to drill underground.


The main structure features
Rock Reamer with replaceable tools was developed for large-diameter HDD projects, where extending downhole service life is essential. Larger bearings and cutters greatly extend downhole life than traditional smaller cutters.
The replaceable milling cutter kit has two styles of TCI and Milled Tooth, which are suitable for various rock formations. The body of all drills has three cutters, which can open four holes of different sizes.
All tool bearings are metal sealed. The cutter lock is used to prevent the cutter from malfunctioning.
Provide 400-2000mm hole opener.


Field of use
There are three stages
1 .the first stage is to drill a small diameter pilot hole.
2. The second stage is enlarge the hole with a larger diameter cutting tool called an HDD Reamer,
Rock Reamer or Hole Opener.
3. The third stage is inserting the casing pipe or other product into the enlarged hole.


Advantages
Cutting Structure
Reaming bit mainly consists of four or more cones. Main cutting tooth is Tungsten Carbide insert tooth and steel tooth welded new-type wear-resistant alloy. High quality tungsten carbide tooth of new formula and new technique increases the service life of reaming bit. The pilot is roller cone bit or drag bit.
Seal and Lubrication
The bearing seal applys high performance O-ring seal or metal sealed bearing and imported lubrication grease special for bit.
Product Predominance
It is applied in the big size casing well section, mining and infrastructure building drilling.

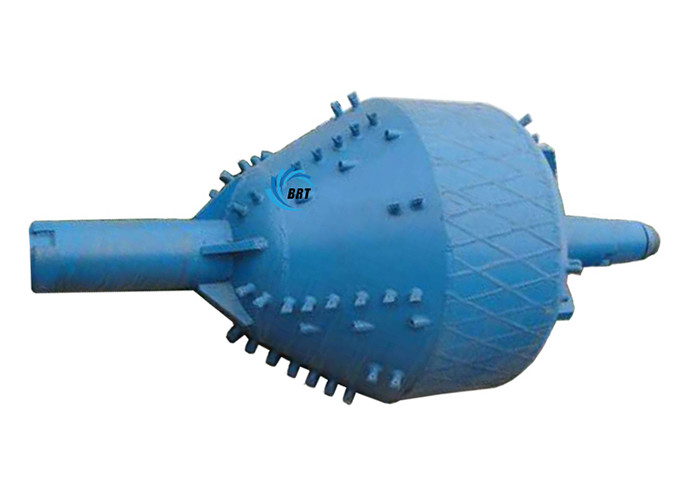

Pic Show




FAQ:

1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check if the product is what you want?
Answer: If possible, please attach a reference picture to avoid any misunderstanding or any link on our website for better understanding.

5. How to control the quality?
Answer: We have our own experienced QC team, and will carry out strict inspection and testing on each order before shipment.

6. Fast delivery time:
Answer: It usually takes 25 days to produce, if we have stock of the size you require, it only takes 3 or 5 days.

7. Competitive price:
Answer: Since we sell directly to customers who do not have distributors, our factory can provide you with the lowest price!
