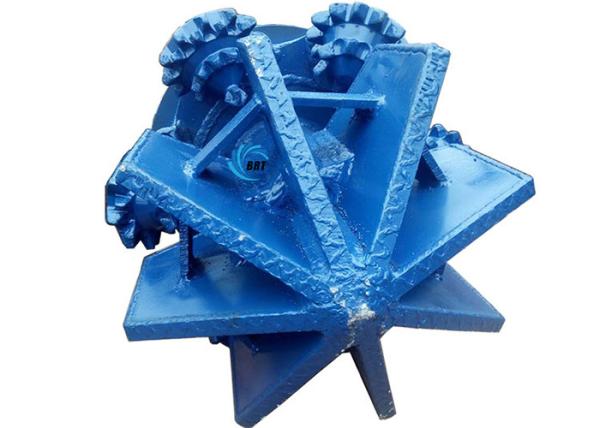

Metal Sealed Bearing Horizontal 800mm Soil Hole Opener

800mm Soil Hole Opener All Cutters Bearing Is Metal Sealed

Introduction
HDD hole opener for horizontal drilling
Horizontal reamer, also called HDD reamer, is used to expand the pilot hole of horizontal directional drilling (HDD)-HDD is used when trenching and digging are impractical. This drilling technique allows drilling underground in a maneuverable, trenchless manner.


The main structure features
Reamers with replaceable tools were developed for large-diameter HDD projects where extending downhole life is essential. Compared with small traditional tools, large bearings and tools can significantly extend downhole life.
There are two types of replaceable milling cutter sets, TCI and gear grinding, to adapt to various rock formations. All drill bodies have 3-6 cutters and can drill 4 holes of different sizes.
All tool bearings are metal sealed. The tool lock is used to prevent the tool from falling off.
Can provide 400-2000mm hole opener.


Advantages
Cutting structure
The reamer bit is mainly composed of four or more cones. The main cutting teeth are a new wear-resistant alloy welded by tungsten carbide inserts and steel teeth. The high-quality tungsten carbide teeth with new formula and new technology improve the service life of the reaming drill. The guide is a roller bit or a drawing bit.
Sealing and lubrication
The bearing seal adopts high-performance O-ring seal or metal seal bearing, and imported special grease for the drill bit.
Product advantages
It is suitable for large-scale cased well sections, mines and infrastructure drilling.


Product parameters

There are three stages
1. The first step is to drill a small diameter pilot hole.
2. The second step is to use a larger diameter cutting tool HDD Reamer to expand the hole,
Reamer or hole opener.
3. The third step is to insert the sleeve or other product into the enlarged hole.



Pic Show




FAQ:

1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
