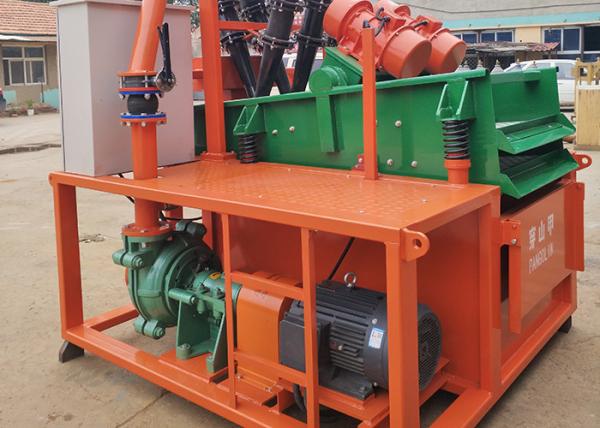

Polyurethane Screen 300GPM Drilling Mud Recycling System
Easy To Disassemble, Saving Time HDD Mud Recycling System
Introduction
The HDD drilling fluid recovery system is designed for horizontal
directional drilling rigs (HDD).
According to drilling mud requirements, THE HDD mud recovery system
may include vibrating screen, mud cyclone, mud cyclone, CAN
separator centrifuge, mud tank, mud mixer, mud gun, conveying pump,
etc. Performance of the vibrating screen under mud flow and
drilling mud separation and different mud requirements.
Main structural features
1. Good capacity and performance: The system capacity can reach
240m3/h (1000GPM), which can meet the slurry treatment of
large-scale trenchless projects.
2. The high wear-resistant polyurethane cyclone separator is the
same as the international brand, can be used for more than 3800
hours, has a long service life and good interchangeability.
3. All parts of the equipment are connected quickly and
disassembled conveniently, saving time.
4. Explosion-proof lamps meet the requirements of night
construction, easy to operate, safe and reliable.
Product parameters
| Customized | YES |
| Capacity | 50-240 ㎥/h (200-1000 GPM) |
| Screen Area | 2.2-8.4 ㎡ |
| Separation Stage | 2stage / 3stage |
| Tank Volume | 5-30 ㎥ |
| Total Power | 25-184 Kw |
| Total Weight | 5.5-20 t |
| Land Transport Dimension (mm) | customized |
| Screen material | Polyurethane |
| Cyclone (mm) | 250 -900 |
| Impeller material | Cr26 |
| Application | Drilling |
| Specification | Can be customized according to requirements |
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C |
| Capacity (m3/h) | 30 | 60 | 120 | 200 |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 |
| Pressure (MPa) | 1.0~2.0 |
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 |
Screen size (mm) | UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Cone Model | FN-100 | FN-150 |
| Cone Number | 3 | 6 | 12 | 8 |
| Separation size (μm) | 10-30 |
| Total Power (KW) | 9 | 13 | 25 | 40 |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 |
HDD mud recovery system working procedures
1. After 1 or 2 or 3 sets of desander cyclones sit on the vibrating
screen, a set of centrifugal pumps will separate the desander
cyclong in the second stage, and the solid desander will discharge
the vibrating screen or directly cut the box and the liquid flow
desander Will flow into the desander chamber.
2. After the de-sander, a certain number of de-sand cyclones will
be placed to separate fine particles. The solids except the de-sand
will be discharged into the vibrating screen or cuttings box, and
the fluid in the de-sand will enter the de-sand chamber .
3. There is a drilling machine on each side of the drilling machine
and a set of vertical mud pumps are installed on the top of the
drilling machine to feed the vibrating screen. The shale shaker
separates the drill cuttings and the fluid portion falls into the
sand pool through the sieve hole.
4. The mixing pump is installed on the anti-skid trough to
transport the drilling mud and inject the mud into the mud hopper
to remix the new mud with new chemicals. The mixing hopper can be
installed on the top of the tank or on the slider according to
customer requirements.
Advantages
1. Modular design, small floor space, flexible configuration and
installation according to customer requirements.
2. The side plate of the mud tank is designed as a corrugated
load-bearing type, which is safe and reliable, and can withstand
larger loads.
3. The system adopts electric centralized control, which is easy to
operate.
4. All equipment adopts corrosion-resistant and wear-resistant
design with long service life.
5. Suitable for harsh drilling conditions, cold resistance, heat
resistance, explosion-proof, leak-proof, corrosion-resistant, and
rain-proof.
6. Simple installation and disassembly, convenient for frequent
movement of drilling personnel.
Pic Show
