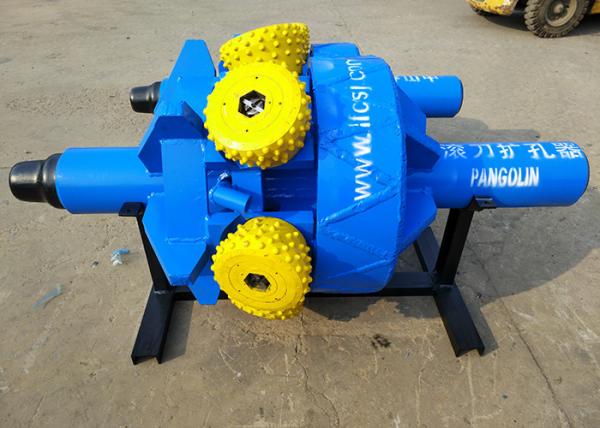

Trenchless Horizental Drilling Replaceable HOB Hole Opener
Introduction
The specifications of pangolin hob hole openers range from 16" to
70", and are divided into two types: MT knife and welding knife,
which are suitable for various compressive strength of the
formation. This product is used for the reaming of oil, natural
gas, petrochemical, sewage, power and fiber optic pipelines in
trenchless horizontal directional drilling.
Larger bearings and smaller conventional tools significantly extend
downhole service life. Interchangeable cutters are set in TCI and
milling gear styles to match your shaping. All drill bits have 3-6
tools and can open 3 holes of different sizes.
Features
The unique multi-stage anti-disengagement interlocking device
prevents the hob from tripping when the drill bit is empty, and
prevents the hob shell from falling off when the bearing is
damaged.
The roller body is inlaid with a large-diameter hard alloy, which
has a good rock-breaking effect; the bearing diameter is large, and
the impact resistance is strong; the metal seal is used, and the
service life is long.
Advantages
The replaceable hob hole opener is forged from high-quality alloy
steel with good weldability. After modulation, the tensile strength
is high, which can meet the tensile requirements of large-tonnage
drilling rigs. The connection between the wheel body and the valve
body is reliable, and the loading and unloading are convenient, and
no large-scale special hydraulic equipment is needed. A manual
wrench is enough, which is convenient for on-site replacement.
Product parameters
| Model Number | 16inches-70inches |
| Type | Reamer |
| Machine Type | Drilling Equipment |
| Material | Carbon Steel |
| Usage | Well Drilling Machinery |
| Drilling Depth | 9000m |
| Rig Type | HDD Rig |
| Size of Cutters | 10inches-14inches |
| Trademark | PANGOLIN |
| Processing Type | Forging |
Reamer Size | Hob size and # of Hob | Threads |
| Hob size | #of Hobs | Hob size | # of Hobs |
| | | | |
4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
| 18” |
10” (Ø250mm) | 3 | | |
| 22” | 4 | | |
| 26” | 5 |
14” (Ø355mm) | 3 |
| 30” | 5 | 4 |
| 34“ | 6 | 5 |
| 38“ | 7 | 5 |
| 42“ | 7 | 6 |
| 46” | 8 | 6 |
| 48” | 9 | 7 |
Used in
The hob opener is the most effective tool for dealing with various
large-diameter piles in hard rocks, gravel formations, and isolated
rocks. It has unique performance, which can greatly reduce the
economic benefits of engineering cost.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
