46" Horizontal Threaded Rock Drill Cone Roller Reamer
Features
Optimized structure&ingenious design, fasterdrilling speed.
Premium roller cone cutters. Optional for different crossing.
Enhanced TCI Protection on heel of cones and arm-back.
Bunched Tungsten carbide protection on body.
Bunched rungsten carbide protection on stabilizeer.
Advantages
1. It adopts a floating load-bearing structure. The floating
elements are made of new materials with high strength, high
elasticity, high temperature resistance and high wear resistance,
and the surface is treated with solid lubricants.
2. New high temperature resistant grease, which can be worn at
250℃.
3. The steel ball locks the cone to adapt to high speed.
4. The blade adopts high-strength and high-toughness carbide alloy
teeth, which fully exerts the blade's high wear resistance and
excellent cutting ability, and improves the life of the cutting
tooth of the drill bit.
5. The use of all-rubber oil storage bladder can limit the pressure
difference, prevent drilling fluid from entering the lubrication
system, and provide a good lubrication guarantee for the bearing
system.
Product parameters
| Model | 36" inch 915mm |
| Total Length | 1500 mm |
| Thread Connection | 6 5/8 Reg Pin & Box |
| Suitable Formations | Soft, Medium Soft, Hard, Medium Hard, Very Hard |
| Weight | 5kg~810kg |
| Material | Carbide, Alloy |
| Processing Type | Casting |
| Structure | Horizontal |
| cutter quantity | 5 pcs or 6 pcs |
Reamer Size | Cone size and # of Cones | Threads |
| Cone size | #of Cones | Cone size | # of Cones |
| 10“ | 6 1/2” | 3 | | | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) |
| 12“ | 8 1/2” | 3 | | |
| 16“ |
8 1/2”or 9 1/2” | 4 | | | For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
| 18”-20“ | 5 | 12 1/4” | 4 |
| 22”-24“ | 6 |
12 1/4” or 13 5/8” | 5 |
| 28”-30” | 7 | 6 |
| 32”-34” | 8 | 7 |
| 36“-38” | 9 | 8 |
| 40“-42” | 10 | 9 |
| 44“-46” | 11 | 10 |
| 48”-50” | 12-13 | 11 |
Introduction
Cone hole openers are the apply to oil drilling and geological
drilling. The roller cone hole opener has the effect of impacting,
crushing and shearing the formation rock when it rotates.
Therefore, the cone hole opener can adapt to soft, medium and hard
formations. Especially after the emergence of jet cone bit and long
nozzle cone bit, the drilling speed of roller cone bit is greatly
improved, which is a major revolution in the development history of
cone hole opener.
Used in
Procurement of products for drilling, exploration, petroleum, drill
bits, drilling accessories.
The cone reamer is the most widely used in petroleum drilling and
geological drilling.

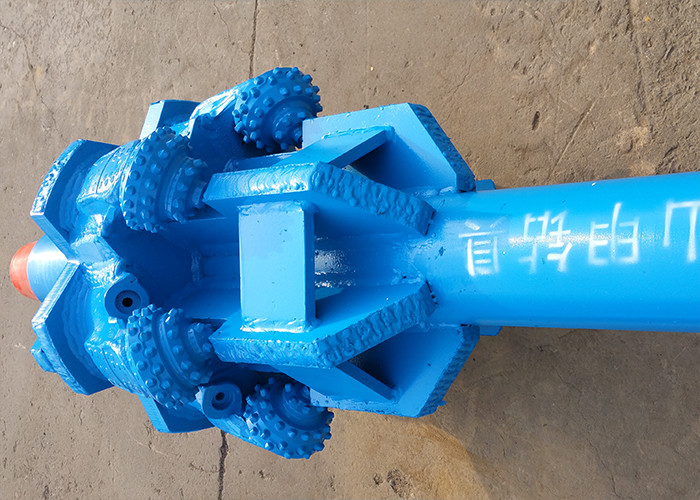

Pic Show
