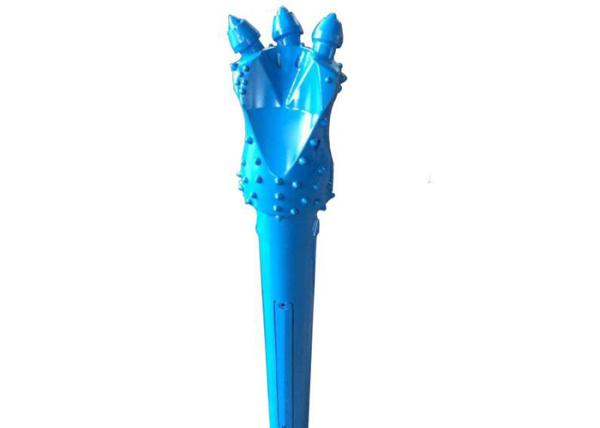

Alloy Stainless Steel Water Well HDD Trihawk Drill Bit
Sonde Housing With Eagle Claw Drill Bits / Drill Bits For HDD
Project
Product parameters
| Size | 108,127,145,165mm or Customized |
| Suitable drill rod | 60,73,76,83,89mm or Customized |
| Suitable HDD drill rig | Vermeer, Ditch Witch, Case, American Auger, etc |
| OD | 110mm-150mm |
| Hole diameter | 140mm=180mm |
| Drill depth | 15m |
| Hole angle | 16 |
| Drill pipe diameter | ≥ 60 |
| Applicable Industries | Construction works |
| Machine Type | Drilling Tool |
| Material | Carbon steel, Stainless Steel |
| Processing Type | Forging |
| Use | Horizontal directional drilling |
| Thread | NC23 |
| Weight | 70kg |
| Packaging | Wooden case |
| Color | Blue or Customized |
| Thread | 4 1/2""IF box and pin |
| Diameter of hole | 140mm-180mm |
| Application rock formation | Weathered rock drilling |
Introduction
When it comes to grinding, high-yield hard drive blades and drill
bits, we supply the most popular rock drill bit, Eagle Claw, which
keeps the core of the drill bit with low wear for a long time and
long-term use of cemented carbide teeth to grind through the
hardest rocks.
It uses three standard conical milling cutter teeth, and its thick
hard surface is spirally wrapped around each tooth to make it have
better occlusal performance and longer service life. The foundation
surrounding each tool tooth is an extra cemented carbide block
lined with a high-impact area to give it more life.
Advantages
The perfectly balanced cutting design enables smooth and efficient
operation.
Tool teeth can be hard alloy surface hardened to achieve maximum
durability.
The aggressive three-tooth carbide cutting action can pass the most
difficult conditions.
Quick and easy replacement of carbide milling cutter teeth with
straight through holes.
Steering face has a conical shape for quicker reaction to
directional pushes.
Dome carbides provide great wear resistance without cutting the top
of the hole for great steering.
Minimize the chance of clogging with a built-in check valve.
Features
Eagle claws can tear sandstone, shale and pebbles.
Quick change of carbide tool teeth and balanced cutting design
improve stability and reduce vibration.
Active three-tooth carbide cutting action.
The conical turning surface can quickly react to the direction of
pushing.
Used in
Eagle claws can penetrate sandstone, shale and cobblestone for
horizontal directional drilling
Pic Show
FAQ:
1. How to order products?
Answer: Please send an inquiry with a detailed item description or
model number.
2. How about ordinary packaging?
Answer: If there is no special packaging requirement, we will use
it as regular packaging. Put it in a small carton first, and then
put the big carton together to ensure that the goods are complete.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
