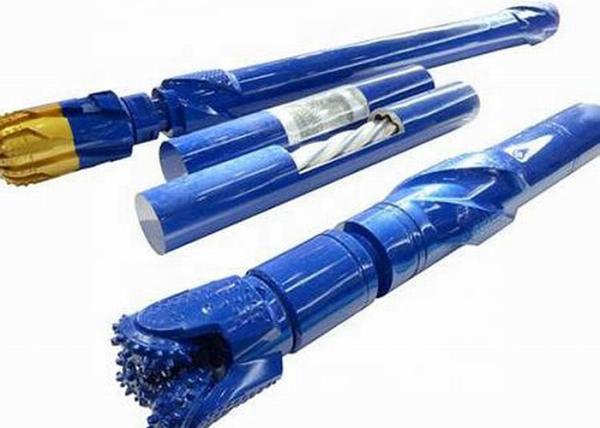

Big Torque Running Stable 140mm Drilling Mud Motor
Big Torque Drilling Mud Motor Increased Rate Of Penetration
Advantages
Penetration rate increases.
Better deviation control.
Reduce drill string failure rate.
Reduce wear and tear on rotary, kelly, and rotary drives.
Lower fuel costs because it takes less energy to drive a downhole
motor than rotating a well.
Introduction
Downhole motor is a kind of downhole dynamic drilling tool upon the
power of drilling mud. Mud stream from the outlet of mud pump flows
through a by-pass valve into the motor. This stream produces
pressure loss at both inlet and outlet of the pump, to push the
rotor into rotating, and to transmit the torque and speed onto the
bit. The downhole motor property mainly depends upon its property
parameters.
Product parameters
| Weight | 500kgs |
| Bend | Accoridng Customer Drill Requirement |
| Type | Reamer |
| Machine Type | Drilling Tool |
| Material | High Manganese Steel |
| Processing Type | Forging |
| Use | HDD drilling, hole opener |
| Sealed Type | Rubber sealed |
| Color | Blue, red, green or Customized |
| Thread | D36 |
| Bit Size | 1050mm |
| Model | 5LZ95x7.0L-5-600 | 5LZ120x7.0-5-864 | 5LZ165x7.0-5-840 | 5LZ172x7.0-5-840 | 5LZ203x7.0 -5-840 |
ToolOD
mm in | 95 3 3/4 | 120 4 3/4 | 165 6 1/2 | 172 6 3/4 | 203 8 |
Connecting Thread
up down | 3 1/2REG 2 7/8IF Pin | 3 1/2REG 3 1/2IF Pin | 4 1/2REG 4 1/2IF Pin | 6 5/8REG 5 1/2FH pin | 6 5/8REG 6 5/8FH |
| LOBE | 5:06 | 5:06 | 5:06 | 5:06 | 5:06 |
| Stage | 5 | 5 | 5 | 5 | 5 |
| Flow Rate lpm gpm | 320-800 85-211 | 650-1300 171-342 | 862-1724 228-456 | 947-1894 250-500 | 1113-2225 295-588 |
| Rotory peed rpm | 124-300 | 140-280 | 87-174 | 78-154 | 79-158 |
Output Torque
N.m lb-ft | 1388 1025 | 2344 1730 | 4590 3386 | 5200 3835 | 6277 4629 |
Max Torque
N.m lb-ft | 1962 1477 | 3312 2443 | 6484 4783 | 7345 5417 | 8866 6540 |
output power
KW hb | 53 72 | 87 117 | 100 135 | 118 159 | 130 176 |
Used in
According to the actual needs of drilling, we have introduced high,
medium and low speed downhole motors with various models and
different functions, which are suitable for all kinds of working
conditions.
1. Standard motor, mud lubricated drive shaft, straight, single,
double bend.
2. Long shaft torque is increased by 30%-60% over standard shaft,
lubricated by mud, straight, single and double bending.
3. The high-flow type adopts hollow rotor and different sizes of
cemented carbide nozzles to increase the feed flow and bit power.
Features
Big torque.
High effective.
Wide flow rate range.
Running stable.
Long using time.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
