Non Magnetic Drill Collars Good Low Permeability And High Strength
Product parameters
| Machine Type | Drilling Tool |
| Material | Carbon Steel |
| Processing Type | Forging |
| Use | Well Drilling |
| bit size | 3 3/4"(95mm) |
| connected thread | 2 7/8''reg |
| lobe | 5:6 |
| stage | 4 |
| flow rate | 162-578 lpm |
| rotory speed | 121-432rpm |
| working pressure loss | 3.2mpa |
| output torque | 613 N.m |
| output power | 36kw |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction works
, Energy & Mining |
| Model | ToolOD mm | Connecting Thread | For Mud motor | IADC |
| 4 1/8” | 108 | 2 7/8IF | 5LZ95x7.0L-5-600 | 127 217 517 537 617 637 |
| 5” | 127 | 3 1/2IF | 5LZ120x7.0-5-864 |
| 6 3/4” | 172 | 4 1/2IF | 5LZ165x7.0-5-840 |
| 7 1/2” | 190 | 5 1/2FH | 5LZ172x7.0-5-840 |
| 8 1/4” | 210 | 6 5/8FH | 5LZ203x7.0 -5-840 |
Introduction
The non-magnetic drill collar is made of low carbon high chromium
manganese alloy steel. After strict chemical composition
refinement, mechanical properties are obtained by forging. When the
magnetic field intensity is 1 × 105 / 4 area / m, the relative
permeability bias of the non-magnetic drill collar is less than or
equal to 1.010. The magnetic induction gradient of non-magnetic
drill collar at any interval of 100 mm along the inner hole is ≤
0.05
Non magnetic drill collars have unusual design requirements, which
result in unique corrosion resistance problems. The drill collar is
the bottom part of the drill string. The weight of the drill collar
produces the force on the drill bit, which makes the drill bit
drill out. However, the rigidity of the drill collar makes the
force transfer not buckle. Traditional drill collars are made of
alloy steel and, like the rest of the drill string, their corrosion
usually does not cause any problems, except for their threaded
connections. A typical drill collar is 30 feet long and 4 to 9
inches in diameter.
Advantages
Because all the magnetic measuring instruments can sense the
borehole geomagnetic field when measuring the borehole direction,
the measuring instruments must be in a non-magnetic environment.
However, the magnetic data obtained by drilling tool with magnetic
field are often unable to be measured correctly. The non-magnetic
environment can be realized by using non-magnetic drill collar,
which has the characteristics of drill collar in the drilling
process.
Features
It has good low permeability and high strength. Excellent
mechanical properties, with excellent intergranular corrosion
resistance, cracking resistance and wear resistance.
Used in
Pipeline transportation, boiler tubes, hydraulic/automotive tubes,
oil/gas drilling, food/beverage/dairy products, machinery industry,
chemical industry, mining, construction and decoration, special
purpose.

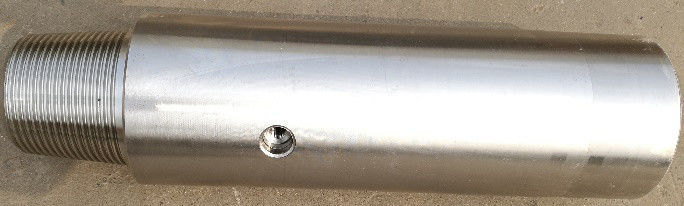

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with
Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our
normal packing. First in small carton, and then put in the bigger
carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy
international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any
misunderstanding or any links from our website for a better
understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict
inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we
have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale
to customers without distributor!
